Arduino Leonardo, ATmega32U4, USB

Product#: ARDUINO LEONARDO EAN/GTIN: 9783645651639 Man. part no.: A000057

€19.90

incl. 19% VAT shipping costs will apply

Item has been added to the shopping cart

The number of this item in the shopping cart has been increased

Quantity of this item in the shopping cart has been reduced

Item has been removed from the shopping cart

Item could not be added to the shopping cart

in stock, delivery within 1 - 2 business days

-

+

Variant :
add to list

Item has been added to list

Unfortunately, something went wrong

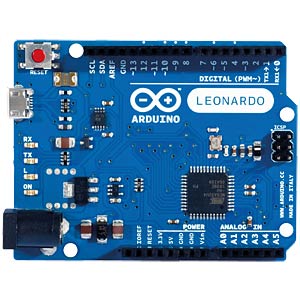

Leonardo is Arduino's™ first development board for use of a microcontroller with integrated USB. The ATmega32U4 microcontroller's direct responsibility for the USB enables access to code libraries that allow the board to emulate a computer keyboard, mouse or other device that uses the USB HID protocol.
It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analogue inputs), a 16-MHz crystal oscillator, a micro USB connection, a power connector, an ICSP header and a reset button. It contains everything you need to accompany the microcontroller: simply connect it to a computer via a USB cable or power it with an AC/DC adapter or battery, and you'll be ready to go.

- ATmega32U4 microcontroller
- Input voltage: 7 - 12 V
- 20 digital input/output pins
- 7 PWM channels
- 12 ADCs
- 16 MHz

Please also take advantage of our service package, available in the download area.

  • Implementation
    • Model
    • Arduino
    • Microcontrol
    • ATmega32u4
    • Flash
    • 32 KB
    • SRAM
    • 2,5 KB
    • EEPROM
    • 1
  • General
    • Type
    • Arduino board
    • Design
    • Leonardo
    • Category
    • Board
    • Bit
    • 8
    • Analog inputs
    • 12
    • Clock
    • 16 MHz
    • SD card
    • No
  • Electrical values
    • Voltage
    • 5 V
  • Interfaces
    • Digital I/O pins
    • 20
    • with PWM
    • 7
    • USB
    • Yes
    • SPI
    • No
    • I²C
    • 1x
    • ICSP
    • Yes
    • TWI
    • 1x
    • UART
    • 1x
    • CAN
    • No
    • SAC
    • No
    • LAN
    • No
    • Bluetooth®
    • No
  • External I/O Ports
    • WLAN
    • No
  • Power supply
    • Low-voltage connection
    • DC panel jack, round, 2-pin
    • Low-voltage input
    • 9 V DC
  • Manufacturer specifications
    • Manufacturer
    • ARDUINO
    • Manufacturer ID
    • A000057
    • Weight
    • 0.033 kg
    • RoHS
    • conform
    • EAN/GTIN
    • 9783645651639
    • HS-Code
    • 84718000
